fix(ui): zoom in and out from cursor position #262

Closed rob-gordon closed 2 years ago

rob-gordon commented 2 years ago

This fixes the odd zooming behavior in the studio react-storm-diagram had some errors in how it processed non-integer zoom levels

To create a smooth zoom we

I changed the minimum zoom to 25 rather than 10 because 10 seemed comically small and 25 was the smallest value in out select in the interface. I also set a reasonable maximum (again, from the select). Happy to change or remove this functionality if people see fit.

Before

https://user-images.githubusercontent.com/159949/152232211-0669be00-d892-4741-abed-6f9185358179.mov

After

https://user-images.githubusercontent.com/159949/152228320-5485e9cd-a100-46a4-88ae-1f2c8c65e13d.mov

linear[bot] commented 2 years ago
DEV-1223 [FEATURE] Flow Editor Zoom Scroll

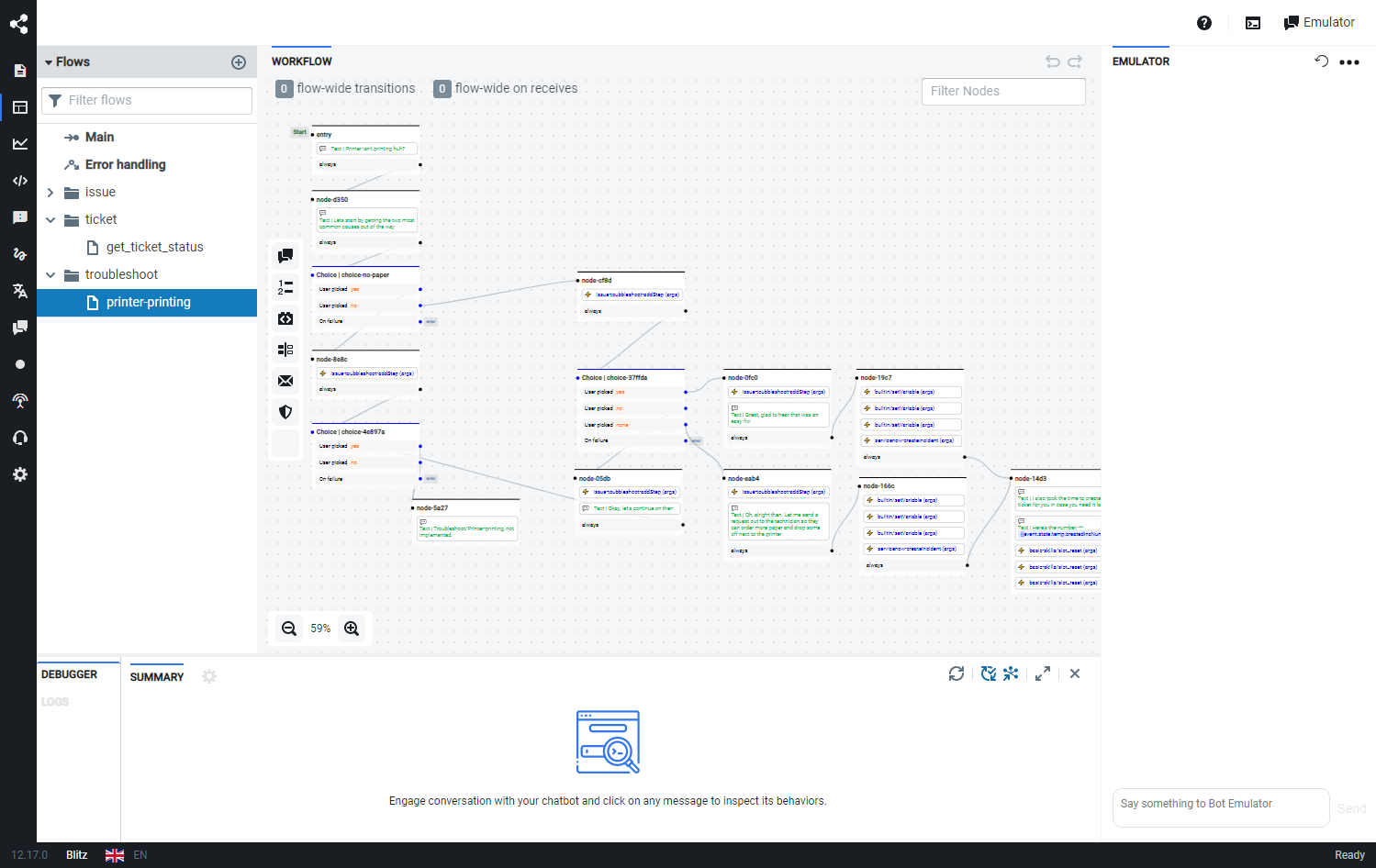

**Is your feature request related to a problem? Please describe.** When working with large flows, the flow-editor gives us a "birds-eye view" of the flow, which tends to make the nodes very small and unreadable. Also, the current mouse scroll-in implementation isn't super friendly. **Describe the solution you'd like** I've thought of a few ideas, but I'm definitely open to more. - Show the top left corner 100% zoom when opening a flow - Have the flow show the birds-eye view once opened, then pan-zoom over a few milliseconds into the top left corner to 100% **Describe alternatives you've considered** Alternatively, and probably the better solution would be to fix the scroll in implementation 1. Increase the zoom % per mouse scroll tick. It is currently at 1%, and it takes a long time to reach the desired zoom level (configurable?) 2. Fix the zoom-in of the flow to properly match the cursor position. Currently seems to favor an up and right-side zoom-in. (should be centered on the cursor) **Additional context** ![image](https://user-images.githubusercontent.com/59566773/106682187-f5976300-658f-11eb-9920-3591c572a616.png)
