Open fayeah opened 4 years ago
只加App Icon是比较简单的,但是Launch Screen有点麻烦,期间也遇到了许许多多的问题,但是最终也都解决了。
nodejs:v12.4.0 React Native: 0.63.3 react-native-cli: 2.0.1 iOS simulator: iPhone 11-13.3 Andoid emulator: Pixel_XL_API_29(Google APIs Intel Atom (x86))
ios
Images.xcassets
AppIcon
npx react-native run-ios
app -> src -> main -> res
npx react-native run-android
LaunchScreen.storyboard
View Controller
Show the Attributes Inspector
删掉默认的文本,默认是项目工程的名字,我这里是“mobileNew”;
添加Launch的图片,依然是到Images.xcassets,底部有一个加号,选择import,将准备好的图片添加进来:
import
ImageView
选中该ImageView,还是在Show the Attributes Inspector里面的第一个选项Image,选中下拉框里面刚刚添加好的Launch 图片;Content Mode选择 Aspect Fit 。
Content Mode
使图片居中:点击Show the Attributes Inspector旁边的Show The Size Inspector,将AutoResizing设置成以下,反选上左的线以及选中中间的线:
Show The Size Inspector
AutoResizing
准备图片,到这里根据Launch 图标生成不同大小的图标(这里要注意大小,因为我后面设置的尺寸高宽一致,所以最好是正方形),一次放入到对应的目录里面,还是在res -> mipmap-*目录里面。
res -> mipmap-*
创建文件 background_splash.xml,在目录 android/app/src/main/res/drawable里面,添加代码内容:
background_splash.xml
android/app/src/main/res/drawable
<?xml version="1.0" encoding="utf-8"?> <layer-list xmlns:android="http://schemas.android.com/apk/res/android"> <item android:drawable="@color/blue"/> <item android:width="200dp" android:height="200dp" android:drawable="@mipmap/icon" android:gravity="center" />
3. 需要设置以下颜色,那么在目录`android/app/src/main/res/values`下面创建文件 `color.xml`: ```xml <?xml version="1.0" encoding="utf-8"?> <resources> <color name="blue">#4F6D7A</color> <color name="primary_dark">#4F6D7A</color> </resources>
在android/app/src/main/res/values/styles.xml里面添加一个splash theme:
android/app/src/main/res/values/styles.xml
<resources> <!-- Base application theme. --> <style name="AppTheme" parent="Theme.AppCompat.Light.NoActionBar"> <!-- Customize your theme here. --> <item name="android:statusBarColor">@color/blue</item> </style> <style name="SplashTheme" parent="Theme.AppCompat.Light.NoActionBar"> <item name="android:windowBackground">@drawable/background_splash</item> <item name="android:statusBarColor">@color/blue</item> </style>
5. 告知app,在初始化的时候使用**splash theme**,在文件 `AndroidManifest.xml`里面添加`SplashActivity`: ```xml <manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.mobilenew"> <uses-permission android:name="android.permission.INTERNET" /> <application android:name=".MainApplication" android:label="@string/app_name" android:icon="@mipmap/ic_launcher" android:roundIcon="@mipmap/ic_launcher_round" android:allowBackup="false" android:theme="@style/AppTheme"> <activity android:name=".SplashActivity" android:theme="@style/SplashTheme" android:label="@string/app_name"> <intent-filter> <action android:name="android.intent.action.MAIN" /> <category android:name="android.intent.category.LAUNCHER" /> </intent-filter> </activity> <activity android:name=".MainActivity" android:label="@string/app_name" android:configChanges="keyboard|keyboardHidden|orientation|screenSize|uiMode" android:launchMode="singleTask" android:windowSoftInputMode="adjustResize" android:exported="true"> <intent-filter> <action android:name="android.intent.action.MAIN" /> <category android:name="android.intent.category.DEFAULT" /> </intent-filter> </activity> <activity android:name="com.facebook.react.devsupport.DevSettingsActivity" /> </application> </manifest>
这里要注意的是
android:exported="true"
Default
SplashActivity.java
MainActivity.java
package com.mobilenew; // make sure this is your package name
import android.content.Intent; import android.os.Bundle; import androidx.appcompat.app.AppCompatActivity;
public class SplashActivity extends AppCompatActivity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState);
Intent intent = new Intent(this, MainActivity.class); startActivity(intent); finish(); }
}
7. 重新build ,就可以看到我们新加的Launch Screen了: ![splash_screen_with_white_background](https://github.com/fayeah/blogs/blob/master/assets/splash_screen_with_white_background.gif?raw=true) 跟iOS一样,都会有一个**白屏**的问题。 ## 解决白屏问题 上面的Launch Screen不论iOS还是Android都有一个白屏的问题需要解决,那么解决方式是引入第三方依赖`react-native-splash-screen`。 ### iOS 1. 添加依赖 `yarn add react-native-splash-screen`,link `react-native link react-native-splash-screen`。但是这里无法link 成功,显示以下**error**: `Cannot read property 'match' of undefined`,解决办法是删掉node_modules目录,重新安装依赖: `yarn install`。(参考:https://github.com/facebook/react-native/issues/16774) 2. 在 `app.js` 里面添加useEffect hook,告知splash screen,一旦app准备好之后隐藏它:
import SplashScreen from 'react-native-splash-screen';
... const App: () => React$Node = () => { useEffect(() => { SplashScreen.hide(); }, []);
return (...

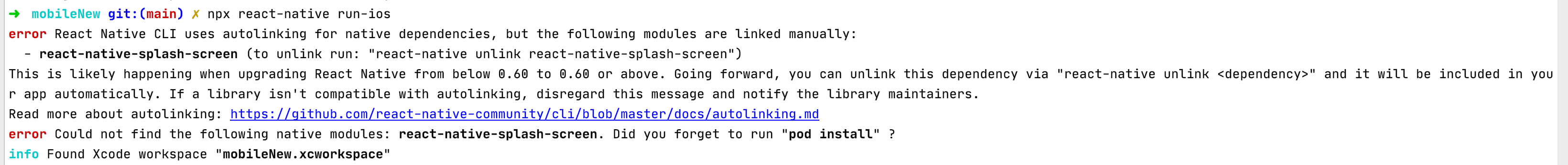

2. 当重新build ios的时候依然有以下错误: ![image](https://user-images.githubusercontent.com/29644978/94982884-c1c01880-0570-11eb-9308-4c383b0b193d.png) 意思是,虽然已经link了,但是对于ios来说依然需要进入到**ios**目录下面,去安装依赖 `pod install`。 3. 使用xcode打开ios工程,找到 `AppDelegate.m`,添加依赖RNSplashScreen:`#import <RNSplashScreen.h>`,并且在`didFinishLaunchingWithOptions`方法里面添加 `[RNSplashScreen show];`,就在`return YES` 的前面一行: ```swift [self.window makeKeyAndVisible]; [RNSplashScreen show]; return YES;
虽然也安装, 也link了,但是还是找不到该依赖,解决办法就是 添加路径到相应的配置里面:
选中 项目→ Build Settings → Search Paths → Header Search Paths 添加:
→ Build Settings → Search Paths → Header Search Paths
$(SRCROOT)/../node_modules/react-native-splash-screen/ios
在link成功之后Android基本上依赖是加好了,重复iOS的 step 1- step 2。
然后,在 MainActivity.java 里面重写onCreate方法:
onCreate
import org.devio.rn.splashscreen.SplashScreen; import android.os.Bundle; @Override protected void onCreate(Bundle savedInstanceState) { SplashScreen.show(this); // here super.onCreate(savedInstanceState); }
需要在android/app/src/main/res/layout目录下创建一个文件 launch_screen.xml:
android/app/src/main/res/layout
launch_screen.xml
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@color/blue" android:gravity="center"> <ImageView android:layout_width="200dp" android:layout_height="200dp" android:layout_marginTop="24dp" android:src="@mipmap/icon" /> </LinearLayout>
重新build android的包,就就可以看到白屏修复之后的效果了:
androidx.appcompat.app.AppCompatActivity
android.support.v7.app.AppCompatActivity
References:
Note:
安装完一个新的依赖之后,会报一些错误,可能需要删掉simulator上的app,重新start和install。 router doc: https://reactnavigation.org/docs/getting-started/
只加App Icon是比较简单的,但是Launch Screen有点麻烦,期间也遇到了许许多多的问题,但是最终也都解决了。
Environment:
nodejs:v12.4.0 React Native: 0.63.3 react-native-cli: 2.0.1 iOS simulator: iPhone 11-13.3 Andoid emulator: Pixel_XL_API_29(Google APIs Intel Atom (x86))
添加App Icon
iOS
ios
Images.xcassets
->AppIcon
,把之前生成好的图标按照大小一次拖拽到不同的区域:npx react-native run-ios
,iOS的图标就加好啦Android
app -> src -> main -> res
(默认的android图标)也替换成我们需要的图标:npx react-native run-android
添加Launch Screen
iOS
LaunchScreen.storyboard
,选中View Controller
,再选中右侧的Show the Attributes Inspector
,将Size这个选项设置为Page Sheet(Show the Attributes Inspector的第一个选项):删掉默认的文本,默认是项目工程的名字,我这里是“mobileNew”;
添加Launch的图片,依然是到
Images.xcassets
,底部有一个加号,选择import
,将准备好的图片添加进来:LaunchScreen.storyboard
,添加一个ImageView
,先找到右上角的加号然后搜索ImageView,即可添加:选中该ImageView,还是在
Show the Attributes Inspector
里面的第一个选项Image
,选中下拉框里面刚刚添加好的Launch 图片;Content Mode
选择 Aspect Fit 。使图片居中:点击
Show the Attributes Inspector
旁边的Show The Size Inspector
,将AutoResizing
设置成以下,反选上左的线以及选中中间的线:Android
准备图片,到这里根据Launch 图标生成不同大小的图标(这里要注意大小,因为我后面设置的尺寸高宽一致,所以最好是正方形),一次放入到对应的目录里面,还是在
res -> mipmap-*
目录里面。创建文件
background_splash.xml
,在目录android/app/src/main/res/drawable
里面,添加代码内容:在
android/app/src/main/res/values/styles.xml
里面添加一个splash theme:这里要注意的是
android:exported="true"
Default
,否则在android模拟器上会安装2个appSplashActivity.java
文件,与MainActivity.java
同一个目录:import android.content.Intent; import android.os.Bundle; import androidx.appcompat.app.AppCompatActivity;
public class SplashActivity extends AppCompatActivity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState);
}
import SplashScreen from 'react-native-splash-screen';
... const App: () => React$Node = () => { useEffect(() => { SplashScreen.hide(); }, []);
return (...
虽然也安装, 也link了,但是还是找不到该依赖,解决办法就是 添加路径到相应的配置里面:
选中 项目
→ Build Settings → Search Paths → Header Search Paths
添加:$(SRCROOT)/../node_modules/react-native-splash-screen/ios
Android
在link成功之后Android基本上依赖是加好了,重复iOS的 step 1- step 2。
然后,在
MainActivity.java
里面重写onCreate
方法:需要在
android/app/src/main/res/layout
目录下创建一个文件launch_screen.xml
:重新build android的包,就就可以看到白屏修复之后的效果了:
中间遇到的一些问题
androidx.appcompat.app.AppCompatActivity
而不是android.support.v7.app.AppCompatActivity
,在参考文章中用的依赖不适合我这的情况,所以我需要在SplashActivity.java
文件里面引用正确的依赖androidx.appcompat.app.AppCompatActivity
。References:
Note:
安装完一个新的依赖之后,会报一些错误,可能需要删掉simulator上的app,重新start和install。 router doc: https://reactnavigation.org/docs/getting-started/
