Receiving different results for the same (encrypted) calculation on different runs (CKKS Scheme)

[renis1235]

Performing several calculations with the same values results in different outcomes each time

Hello. We are implementing a vector * matrix multiplication using the Linear Transformation algorithm. I will try to avoid the details of this algorithm and how it works (if you want to take a look click here). For testing purposes we are using a matrix filled with double values and all of them are 1s. We are multiplying this with a vector which is also filled only with ones. These are the parameters that we are using:

poly_modulus_degree = 8192 coeff_modulus = CoeffModulus::Create(poly_modulus_degree, { 60, 40, 40, 60 }) scale = pow(2.0, 40);

We are using the C++ version of the Library, and Visual Studio as the IDE.

This is the code snippet that performs the multiplication:

inline Ciphertext Linear_Transform_Cipher(Ciphertext ct, vector<Ciphertext> U_diagonals, GaloisKeys gal_keys, EncryptionParameters params, bool rescale)
{
    // ct is the vector, U_diagonals are the diagonals of the matrix, the other ones are self explanatory
    cout << "    + Invoked Linear_Transform_Cipher C_vec . C_mat:" << endl;
    auto context = SEALContext::SEALContext(params);
    Evaluator evaluator(context);

    Ciphertext ct_rot;

    evaluator.rotate_vector(ct, -U_diagonals.size(), gal_keys, ct_rot);

    Ciphertext ct_new;
    evaluator.add(ct, ct_rot, ct_new);

    cout << "    + Scale add: " << log2(ct_new.scale()) << " bits" << endl;

    vector<Ciphertext> ct_result(U_diagonals.size());

    evaluator.multiply(ct_new, U_diagonals[0], ct_result[0]);

    for (int l = 1; l < U_diagonals.size(); l++)
    {
        Ciphertext temp_rot;
        evaluator.rotate_vector(ct_new, l, gal_keys, temp_rot);
        evaluator.multiply(temp_rot, U_diagonals[l], ct_result[l]);
    }

    Ciphertext ct_prime;
    evaluator.add_many(ct_result, ct_prime);
    if (rescale)
    {
        cout << "    + Scale Linear_Transform_Cipher addmany: " << log2(ct_prime.scale()) << " bits" << endl;
        evaluator.rescale_to_next_inplace(ct_prime);
        cout << "    + after rescale Linear_Transform_Cipher addmany: " << log2(ct_prime.scale()) << " bits" << endl;
    }

    return ct_prime;
}

So far so good, but running this snippet above with exactly the same data, produces different results. The way we have tested this is by running the algorithm with plain data and in the "traditional way" (thus getting the real and expected results) and substracting the expected result with the decrypted & decoded result of the encrypted calc.

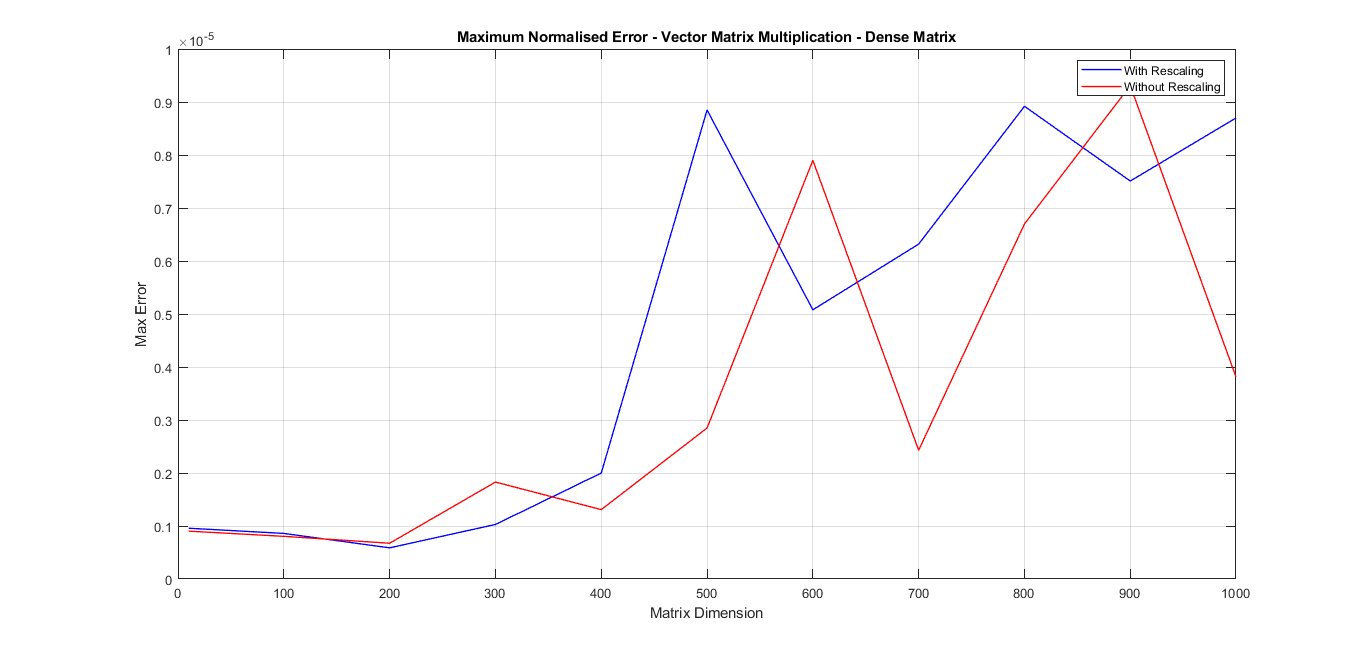

Below you may see the plots that show how different the results are (with different matrix & vector dimensions) for different runs. (with rescaling and without).

Another thing to be noted is that rescaling actually makes things worse. It may be that we are using the library wrong, or it may be that there is a random piece of code in the CKKS scheme.

Also another thing, when we try to do several calculations in a row, of the type:

encrypted_result_1 = matrix vector encrypted_result_2 = matrix encrypted_result_1 encrypted_result_3 = matrix * encrypted_result_2

And so on... But doing this, we either receive wrong results through rescaling...or we get an Exception thrown at us... What would be the best way to solve this? Without decrypting, re-encrypting and then doing the calculations...

Any help will be greatly appreciated. The code that we are using can be found in our repo.

[WeiDaiWD]

I see that you did perform "relinearization" after ciphertext-ciphertext multiplication. Could you please try inserting 'evaluator.relinearize_inplace(ct_prime, relin_keys);' after evaluator.add_many(ct_result, ct_prime);? It requires you to add a new argument to the function, RelinKeys relin_keys. You can get it in a similar way to GaloisKeys gal_keys.

If your test takes the same input messages / plaintext but perform fresh encryption of them each time, it is true that multiple runs with the same input will have different error values, since the error comes from randomness introduced in encryption. Still, error should be similar in scale. When you skipped relinearization, it forces the decryptor to decrypt ciphertexts in noisier way, which may be the cause of spikes in your graphs.

Please share with me your findings or modified code if you are not certain. I'm happy to help you analyze this. It's interesting work!

[najmabegum]

Hi,

I and Renis (the one who opened the issue), work in the same team. I made the change as you suggested and added evaluator.relinearize_inplace(ct_prime, relin_keys);' after evaluator.add_many(ct_result, ct_prime); I repeated the runs for a matrix of dimension 100 * 100 (all entries are 1), and vector entries are 1 too. The results for the maximum error norm are as follows:

Run 1- 3.83521e-05 Run 2- 7.14077e-05 Run 3- 2.94935e-05 Run 4- 1.73372e-05 Run 5- 2.31203e-05

[WeiDaiWD]

I don't think 2~3-bit variance in error is abnormal. But I do notice that after evaluator.multiply(ct_new, U_diagonals[0], ct_result[0]); there is no relinearization or rescale. Relinearization should definitely be inserted here. Sorry that I missed this at the first look. This is the reason why

encrypted_result_1 = matrix * vector
encrypted_result_2 = matrix * encrypted_result_1
encrypted_result_3 = matrix * encrypted_result_2

fails with wrong results.

What are the scales used to encode/encrypt each ciphertext? Is the scale stabilized at roughly 2^40 after each "ciphertext-ciphertext multiplication + reliearization + rescale" layer?

If the scale is not stabilized, you can also get error "scale out of bound" when computing `encrypted_result_2/_3", or get wrong results. Inserting a rescale here could also have helped to make the error smaller. Note that you might have to add another 40-bit prime to the encryption parameters to insert an additional rescale.

[renis1235]

First of all, thank you for taking the time to check our work and thank you for valuing it. We are also thankful for having SEAL provided to us for research purposes. @WeiDaiWD

These are the error terms after adding the relinearization after evaluator.multiply(ct_new, U_diagonals[0], ct_result[0]); evaluator.relinearize_inplace(ct_result[0], relinKeys);

dimension 100*100:

• Run 1 3.29064e-05
• Run 2 1.08903e-05
• Run 3 5.86179e-05
• Run 4 0.00010019
• Run 5 2.72579e-05

dimension 700*700:

• Run 1 0.000393565
• Run 2 0.00033149
• Run 3 0.000135515
• Run 4 9.07438e-05
• Run 5 0.000378668

The scale used is as mentioned above:

scale = pow(2.0, 40);

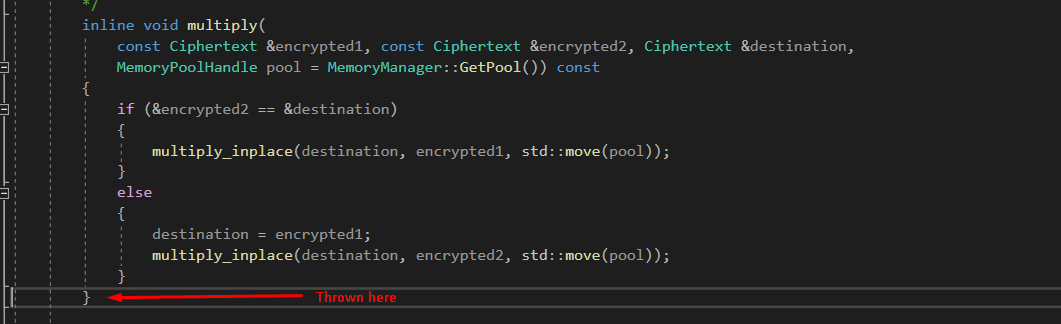

What do you mean by scale stabilizing? The Exception that we get is a Memory Exception and it is thrown on the line: evaluator.rotate_vector(ct, -U_diagonals.size(), gal_keys, ct_rot);. Which is logical since it is the first line of the function which does an operation... And you are absolutely correct, after the second iteration, the results are way off... Could you please be more detailed on where we should rescale to make the error smaller and would adding just one 40-bit prime to the parameters be enough?

[WeiDaiWD]

When you multiply two ciphertexts or a ciphertext with a plaintext, SEAL also multiply their scales. For example, ct_a (with scale 2^40) * ct_b (with scale 2^40) will yield ct_c (with scale 2^80). Then if you perform rescale on ct_c, assuming that a 40-bit prime will be consumed at this level, ct_c_new will have scale close to 2^40. You would want to keep all intermediate ciphertexts have roughly the same scale with the final ciphertext result for decryption, which is stabilizing.

I added some comments in your code. This should stabilize the scale and should ensure that ct_prime has 40-bit scale eventually. If you missed one of the two rescales, it will result in different scales in ct_result[i] and causes a run-time error thrown by evaluator.add_many.

inline Ciphertext Linear_Transform_Cipher(Ciphertext ct, vector<Ciphertext> U_diagonals, GaloisKeys gal_keys, EncryptionParameters params, bool rescale)
{
    /* all ciphertexts have scale 2^40 */
    // ct is the vector, U_diagonals are the diagonals of the matrix, the other ones are self explanatory
    cout << "    + Invoked Linear_Transform_Cipher C_vec . C_mat:" << endl;
    auto context = SEALContext::SEALContext(params);
    Evaluator evaluator(context);
    Ciphertext ct_rot;
    evaluator.rotate_vector(ct, -U_diagonals.size(), gal_keys, ct_rot);
    Ciphertext ct_new;
    evaluator.add(ct, ct_rot, ct_new);
    cout << "    + Scale add: " << log2(ct_new.scale()) << " bits" << endl;
    /* this prints 40, right> */

    vector<Ciphertext> ct_result(U_diagonals.size());
    evaluator.multiply(ct_new, U_diagonals[0], ct_result[0]);
    ////// insert relin here
    /* ct_result[0] has scale 80 */
    ////// insert rescale here
    /* ct_result[0] now has scale 40 */

    for (int l = 1; l < U_diagonals.size(); l++)
    {
        Ciphertext temp_rot;
        evaluator.rotate_vector(ct_new, l, gal_keys, temp_rot);
        evaluator.multiply(temp_rot, U_diagonals[l], ct_result[l]);
    }
    Ciphertext ct_prime;
    evaluator.add_many(ct_result, ct_prime);
    ////// insert relin here
    if (rescale)
    {
        cout << "    + Scale Linear_Transform_Cipher addmany: " << log2(ct_prime.scale()) << " bits" << endl;
        /* this prints 80, right? */
        evaluator.rescale_to_next_inplace(ct_prime);
        cout << "    + after rescale Linear_Transform_Cipher addmany: " << log2(ct_prime.scale()) << " bits" << endl;
        /* this prints 40, right? */
    }

    return ct_prime;
}

The number of primes that you need is:

• at least a big one for decryption, in your case a 60-bit prime;
• the same number of primes as the number of rescales to be performed: if you have two multiplications / rescales in the function and you call the function once, 2 primes; if you call the function twice, 4 primes; and so on;
• a prime at the end that is as large as the largest prime, in your case a 60-bit prime,

The function Linear_Transform_Cipher only has one layer of multiplication, a.k.a. one rescale, so encrypted_result_1 = matrix * vector consumes one prime, the latter 40-bit prime in your parameters. Then encrypted_result_2 = matrix * encrypted_result_1 consumes another prime, the former 40-bit prime in your parameters. Now encrypted_result_3 = matrix * encrypted_result_2 has to consume the only prime left (the starting 60-bit prime) to rescale, that will cause an error. So inserting a 40-bit prime can help here. Still, I don't see why an memory exception is thrown in rotation.

I think the size and variance of error you see is normal. The fact that they grow bigger as dimension is larger is probably because of evaluator.add_many where error from many ciphertexts are accumulated. Even if error in each ciphertext can be seen as independently sampled from a zero-centered distribution, summing many of them will cause a larger variance in the final distribution. And these ciphertexts might not be independent.

Rescale also does not help to reduce the error. It is used to stabilize scales along the computation. It does not alter the distance between error and decimal point in messages. With your parameters, and if you only performs encrypted_result_1 = matrix * vector, you are wasting one prime. Assume that you have all relinearization correctly inserted, without rescaling you should end up with 80-bit scale in encrypted_result_1 to be decrypted with {60, 40, 40} primes, with rescaling you should end up with 40-bit scale in encrypted_result_1 to be decrypted with {60, 40} primes, both of which should have similarly sized error. However, the latter has smaller ciphertexts and faster decryption.

[najmabegum]

Hi, Thank you so much for your time and such a detailed explanation. It has cleared most of our confusions and doubts regarding the primes, and its use in rescaling. Also, we are now much clear on the concepts of relinearization. Thank you.

So, I implemented as per your suggestions, and changed the algorithm as follows:

Changes to parameters: size_t poly_modulus_degree = 16384; params.set_coeff_modulus(CoeffModulus::Create(poly_modulus_degree, { 60, 40, 40, 40, 40, 40, 40, 40, 60 })); double scale = pow(2.0, 40);

Changes to algorithm:

` inline Ciphertext Linear_Transform_Cipher_Sequential_2(Ciphertext ct, vector U_diagonals, GaloisKeys gal_keys,

EncryptionParameters params, bool rescale, SecretKey sk, RelinKeys relin_keys, vector
